LC Series
CTS-ECRD
134.2 kHz Multifunction RFID Reader

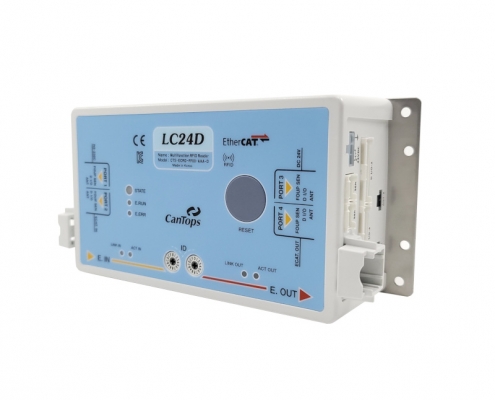

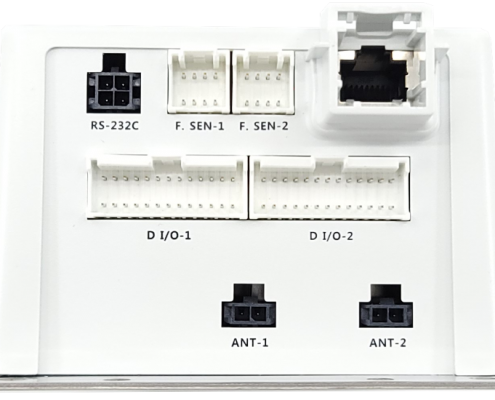

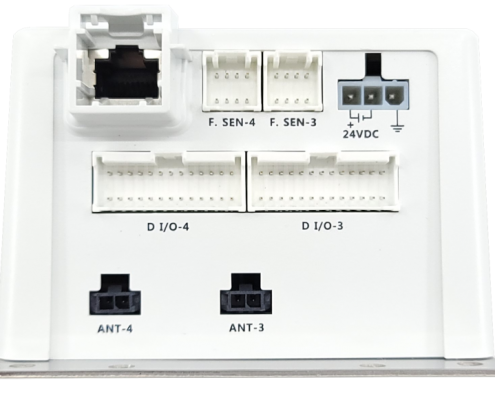

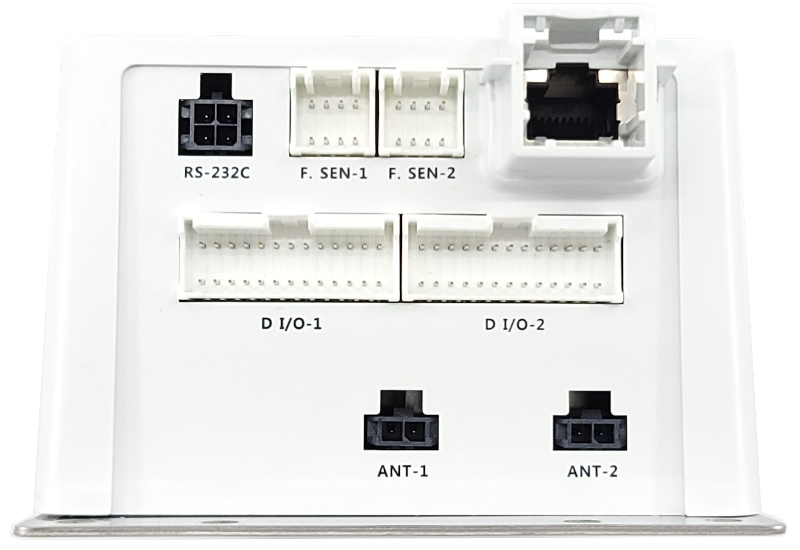

Multifunction RFID Reader LC Series is a multi-functional composite product that integrates Tag RFID Reader for semiconductor logistics management and Digital I/O capabilities that use frequencies in the 134.2 kHz band in an EtherCAT communication environment. Designed simply and compactly, this product is designed to address the inconvenience of installation and to fit the line operating conditions, allowing you to easily use a variety of features. Also, as an option, it can be built as a RFID Reader-only model without Digital I/O Port functionality.
- Integrated configuration of EtherCAT, RFIDReader and DigitalI/O capabilities
- Connect RFID Reader (4-channel) / HPIO (4-port) as one product in Stocker, Conveyor, etc.
- Compact design for easy installation on facility structures
- Stable operation in electromagnetic noise environments around HID and OHT
- Log storage capability that enables analysis of approximately 10,000 tasks, including communication data errors and absolute time
KC
- CTS-ECRD-FF00-AAA-D : R-C-ca5-CTSECRDFF00
CE
Preparing
| Classification | Detailed Items | Contents |
|---|---|---|
| RFID Tag Recognizing capabilities | Frequency | 134.2 kHz |
| Reading time* | Min. : 130ms, Max. : 1000ms | |
| Writing time * | Min.: 390ms, Max.: 3000ms | |
| Max. Reading distance | 110 ~ 160mm (varies depending on the type of antenna) | |
| Max. Writing distance | 70 ~110mm ( varies depending on the type of antenna) | |
| Bending diameter | 45mm | |
| Length | 2M ~ 10M (optional, used by 2M, 4M , 6M, 8M, 10M unit) | |
| Material | PVC | |
| Antenna (optional) | C Type | Length*Diameter=62*13mm / reading distance : 160mm |
| Square Type | I*width*Thickness=43*30.5*12mm / reading distance 110mm | |
| Tag Type | Supports 3 types of MPT, SPT, RO | EX) RI-TRP-DR2B: 17Page' 64bit, Read/Write |
| Communication specification | EtherCAT | 100/10 Full Duplex |
| Environment | Preservation environment | Temperature : -25 ~ 70℃, Humidity : 5~95 % RH (no condensation allowed) |
| Operation environment | Temperature : 0 ~ 50°C, Humidity : 35~85 % RH ( no condensation allowed) |
|
| Power | Input power | AC : 110V~220V, MAX 0.5Arms@AC220V DC : 22V~26V, MAX 4Arms@DC24V , MAX. 600mArms when I/O is excluded. |
| Fuse | 2A/250V, 5x20mm, glass tube fuse | |
| Size (W´H´D) | 185*166*65.7mm (AC power included, connector extruded section excluded) | |
| Weight | Will be listed later | |
| Case material | ABS, SUS(steel) | |
