Guide Sensor
Guide Sensor
Analog Type Guide Sensor
Guide Sensor, LA01,LE01 is a reflection type optical guide sensor using 16 IR sensors. This product is equipped with components and circuits to improve the service life of the sensor, and also is a product that improves the reliability significantly through the integration using EPLD. In addition to this, it is designed to control the abnormal state of the board directly through the analysis of abnormal state of the sensor and the safety diagnosis function.
LD01 is used as a Stop Sensor
Common feature
- Service life of IR LED is significantly extended
- High speed scan time
- High sensor recognition distance
- Watchdog function
- Self-diagnosis function to determine whether the sensor is operating properly
- LA01 Model : Sensitivity adjustment function using dip switch
- LD01 Model : Use the Branch function to orient the sensor orientation
KC
- CTS-IRGS-LA01 : R-R-ca5-CTS-IRGS-LA01
LA01 Model
| Classification | Items | Detail |
|---|---|---|
| Input part | Sensor check mode | Selected by a Dip Switch, Signal name : S.CH |
| Branch selection mode | Selected by a Dip Switch, Signal name : B.EN (no function) |
|
| Sensor sensitivity adjustment | Selected by a Dip Switch, Signal name : BRI | |
| D/A polarity selection | Selected by a Dip Switch, signal name : POL | |
| Output part | S.Good | Photo-Coupler circuit (+12V, Open Collector) |
| Gate On | Photo-Coupler circuit (+12V, Open Collector) | |
| D/A output | ±6.7V ±5% (max. output voltage ±8V) | |
| Function | Sensor type | IR LED, 16EA |
| Disturbance light prevention | Frequency modulation method | |
| Scan Time | Approx. 6ms | |
| Self-diagnosis | Detects if IR LED and light receiving element are being operated properly | |
| Safety function | Micom maloperation prevention function by Watchdog | |
| Connection | 30 Pin Flat Cable, within 3m | |
| Environment | Storage environment | Storage temperature : -30 ~ 70 Storage humidity : 5~95 RH (however, no condensation is allowed) |
| Operation environment | Operation temperature : 0 ~ 50 Operation humidity : 35 ~ 85 RH (however, no condensation is allowed) Disturbance light : Less than 10000Lx Vibration : Less than 4~150 Hz, 4.9 m/?2 |
|
| Power | Input voltage | DC ±12V, ±10% |
| Current consumption | +12V : 200mA, -12V : 40mA | |
| Detection distance | For 20 mm of fixed height : 0 ~ 40mm For 30 mm of fixed height : 20~55nmm |
|
| Detection angle | -3 ~ +3˚ | |
| Detecting object | Reflection Tape, width 50mm | |
| Dimension(W x H x D) | 185 x 92 x 26mm | |
| Weight | Approx. 410g | |
LE01 Model
| >Classification | Items | Contents |
|---|---|---|
| Display and Output | Power LED | +12V input status display |
| BR0, BR1 | Displaying the Operational Status of the Branch Input Signal | |
| ON Rail | A photo-coupler output circuit (+12V), an output is turned off when derailed or when a sensor abnormality (an abnormal operation caused by a wa-wave light) is detected by a sensor. | |
| D/A | +1.1V ~ +8.7V, ±5% | |
| Function | Sensor type | IR LED, 16EA |
| Disturbance light prevention | Frequency modulation method | |
| Scan Time | Approx. 6ms | |
| Self-diagnosis | Detects if IR LED and light receiving element are being operated properly | |
| Safety function | Micom maloperation prevention function by Watchdog | |
| Connector | Molex, 5557-06, 20cm | |
| Environment | Storage environment | Storage temperature : -25 ~ 70℃ Storage humidity : 5~95 RH (however, no condensation is allowed) |
| Operation environment | Operation temperature : 0 ~ 50℃ Operation humidity : 35 ~ 85 RH (however, no condensation is allowed) Disturbance light : Less than 10000Lx Vibration : Less than 4~150 Hz, 4.9 m/?2 |
|
| Power | Input voltage | DC ±12V, ±10% |
| Current | 250mA | |
| Detection distance | 22 ~ 58mm | |
| Detection angle | -3 ~ +3˚ | |
| Detecting object | Reflection Tape, width 50mm | |
| Dimension(W x H x D) | 155 x 80 x 26mm | |
| Weight | Approx. 410g | |
LD01 Model
| CLASSIFICATION | DETAILED ITEMS | CONTENTS |
|---|---|---|
| Output | Operating LED | LED for output status indication |
| Sensor output | Open Collector Type Output drive current: up to 50 mA Output leakage current: up to 50uA/24V Output voltage drop: up to 0.2 V / 50 mA |
|
| Function | Sensor Type | IR LED, 1EA |
| Disturbance light prevention | Frequency modulation method | |
| Scan Time | Approx. 6ms | |
| Connection | JST 3pin connector, HRP-03-S | |
| Environment | Storage environment | Storage temperature: -25 ~ 70°C Storage humidity: 5 ~ 95 %RH (however, no condensation is allowed) |
| Operation environment | Operation temperature: 0 ~ 50°C Operation humidity:35~85 %RH (however, no condensation is allowed) Disturbance light : Less than 10000Lx Vibration : Less than4~150 Hz, 4.9m/s2 |
|
| Power | Input voltage | DC 12~30V, ±10% |
| Current consumption | Less than 20mA | |
| Detection distance | 10 ~ 55mm | |
| Detection angle | -3 ~ +3° | |
| Detecting object | Guide Tape, Width not less than 20mm | |
| Dimension (W'H'D) | 40'33.3'14.1mm(Except connector | |
| Weight | Approx. 40g | |

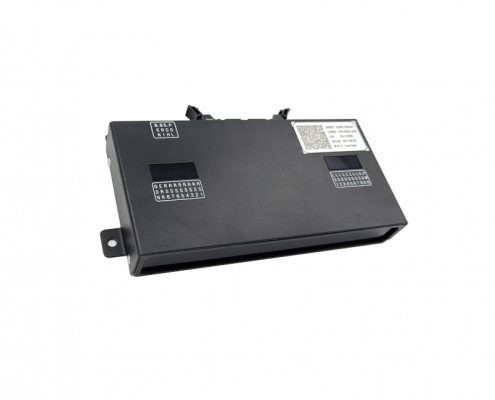

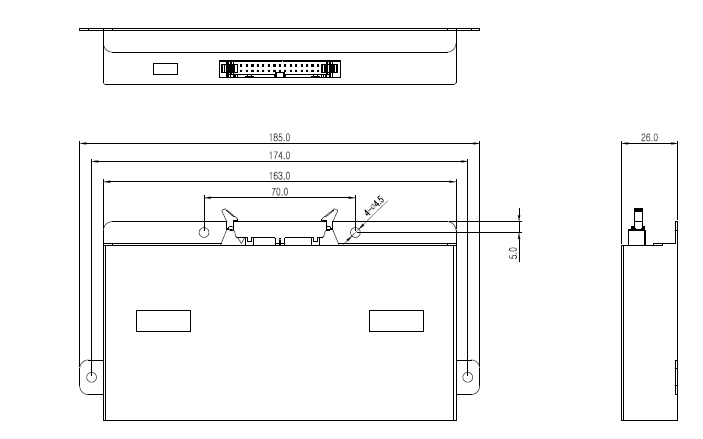

CTS-IRGS-LA01

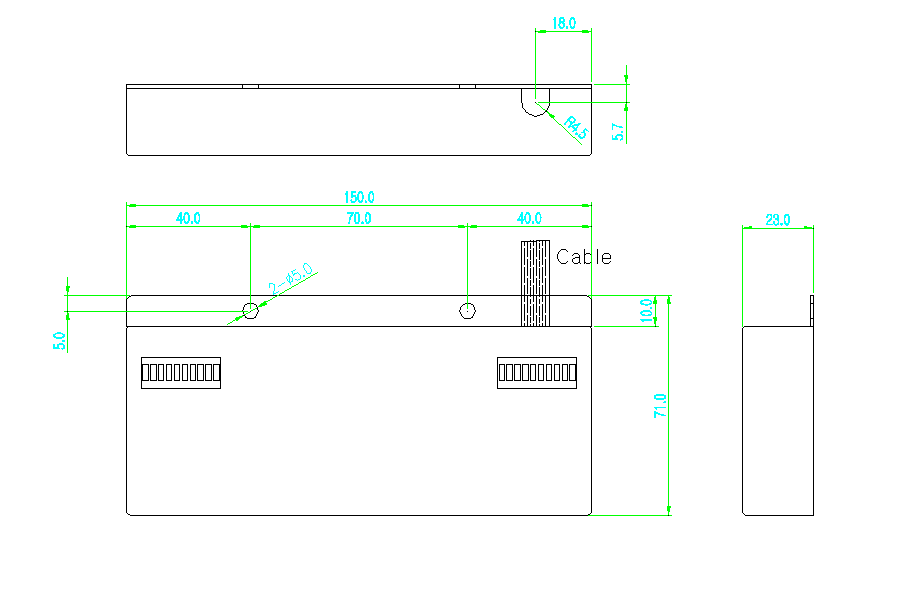

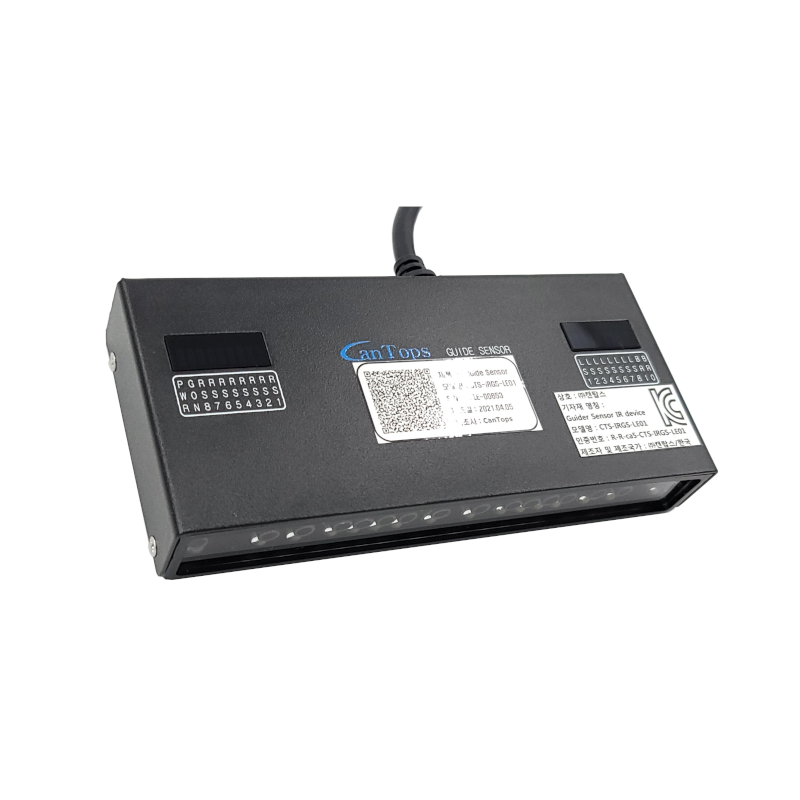

CTS-IRGS-LE01
CTS-IRGS-LD01
Please contact us by phone or e-mail for the drawing files.
