IR PIO
CTS-ICOM

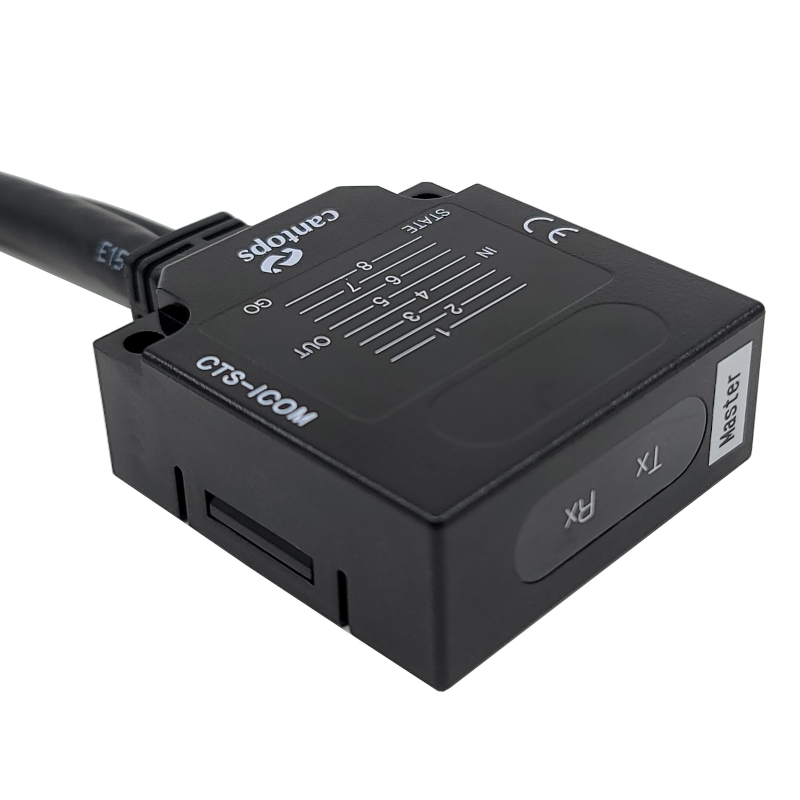

Optical Data Transmission Device
E84 Sensor, IR PIO is an IR (optical) communication device that provides input/output signals between VHL and EQ.
A non-contact device that enables stable operation even with a variety of external light noise.
It’s an excellent product that combines high technology.
IR PIO can communicate with DMS, DMJ, DMGSeries, and SOT-FP801 Series.
- Reliability: Works reliably in poor noise environments
- Fast line stabilization: Wireless log download for error cause analysis
- Compatibility: Compatible and replaceable with third-party Optical Transceivers
- SEMI-E84 and E23 wireless communication that supports a communication protocol.
KC
- CTS-ICOM-AA01(AB01) : R-C-ca5-CTS-ICOM
CE
FCC
SRRC
MIC
Optical (infrared) usage environment
| Division | Specific item | Content |
|---|---|---|
| Display Part | GO | Turned ON if RF and IR communication starts between the master(OHT, AGV) PIO and the slave(EQ) PIO |
| STATE | Flashing as watchdog signals to display the working state | |
| IN | Display of the working state of the input port(8Bit) | |
| OUT | Display of the working state of the output port(8Bit) | |
| External Device Connection | Connector (Optional) | AA01 Model(Slave) : DSUB 25 pins, without connector |
| AB01 Model(Master) : Hirose 26pins, JST, Molex, without connector | ||
| Cable | 26AWG x 25C, Shield | |
| Input | 8 Bit, Transistor IN, 24V On : 10mA, Off : Less than 0.1mA |
|
| Output | 8Bit, Open Collector, NPN, 30V Maximum working current 50mA |
|
| IR(optical) Communication Function | Major function | 8 bit I/O communication |
| Communication media | 870nm, Infrared | |
| Communication distance | 0.5m (0°), 0.25m (+15°, -15°) | |
| Communication angle | 30° (±15°) | |
| Communication method | 1:1 communication, Half Duplex | |
| Communication window position (Optional) | T Type : Top View F Type : Front View |
|
| Optical modulation method | Pulse Modulation | |
| Communication error check | Parity | |
| Communication cycle | About 23ms | |
| Environment | Storage environment | Storage temperature: -25 ~ 70°C Storage humidity: 5 ~ 95%RH (However, there shall be no dew condensation) |
| Working environment | Ambient brightness(Condition when IR is used): 4000lx or less(Incandescent lamp, fluorescent lamp) *) Installed to prevent external light from entering the receptor Working temperature : 0 ~ 40°C Working humidity : 35~85%RH (However, there shall be no dew condensation) Vibration : 4~150 Hz, 4.9m/s2 or less |
|
| Power | Input voltage | DC 24V±10% |
| Consumed current | 100mA or less @ 24V | |
| Case material | Polycarbonate | |
| Size(W x H x D) | 50 x 53 x 20mm (Except the connector) | |
| Weight | About 300g (For EQ, IO cable length 1.5m) | |
*) Usable in an environment without frequency interference with other radio equipment(wireless LAN, Bluetooth, etc.)

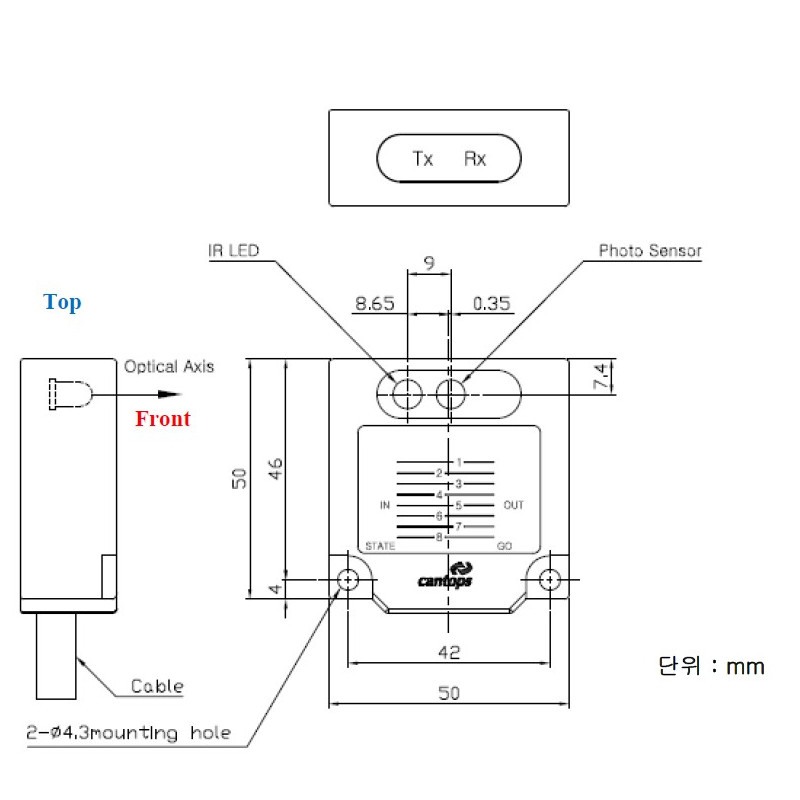

CTS-ICOM(Front View)
CTS-ICOM(Top View)
Please contact us by phone or e-mail for the drawing files.
Product Code Configuration Table
The product code identifies IR PIO specifications.
AA : Slave operation (AB is Master operation)
11 : Connector type (Serial connector : DSUB9 Pin female, I/O cable connector : DSUB25 pin male)
05 : Distance when using optical (IR) communication (05 is 0.5M)
F: IR Window Direction (F: Front view, T: Top view)
150: I/O cable Length (150 : 1.5M)
030 : Serial cable length (030 : 0.3M, Serial cable used for Maintenance)
Please refer to the specifications for details.
