Hybrid PIO

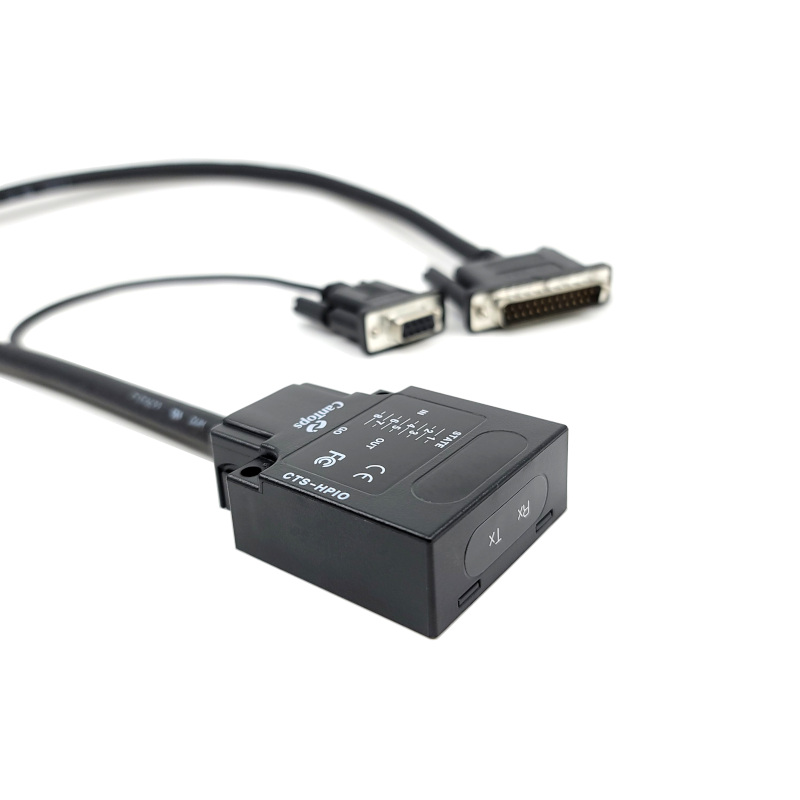

CTS-HPIO-25
World First Hybrid PIO with RF/IR
Hybrid-PIO (E84 Sensor) is a communication device used to exchange 8-bit input/output signals in a non-contact manner in accordance with the Semiconductor SEMI-E84/E23 Protocol Code. It is a composite communication device that integrates 2GHz/5GHz RF and IR (infrared, optical) communication media.
Hybrid-PIO is implemented in the best operating conditions even in poor communication environments, and can be configured with various and convenient add-on features for RS-232C and RF communication, allowing IR or RF communication media to be switched according to the environment.
- SEMI-E84 and E23 wireless communication that supports a communication protocol.
- Contactless exchange of 8-bit input/output signals
- RF (2GHz/5GHz) and IR (infrared, optical) communications media are integrated into one product
- It can be mixed using RF and IR methods, and it can be automatically converted without setting up a separate communication medium depending on the operation method
- Implementation of automatic avoidance in the event of electromagnetic noise interference

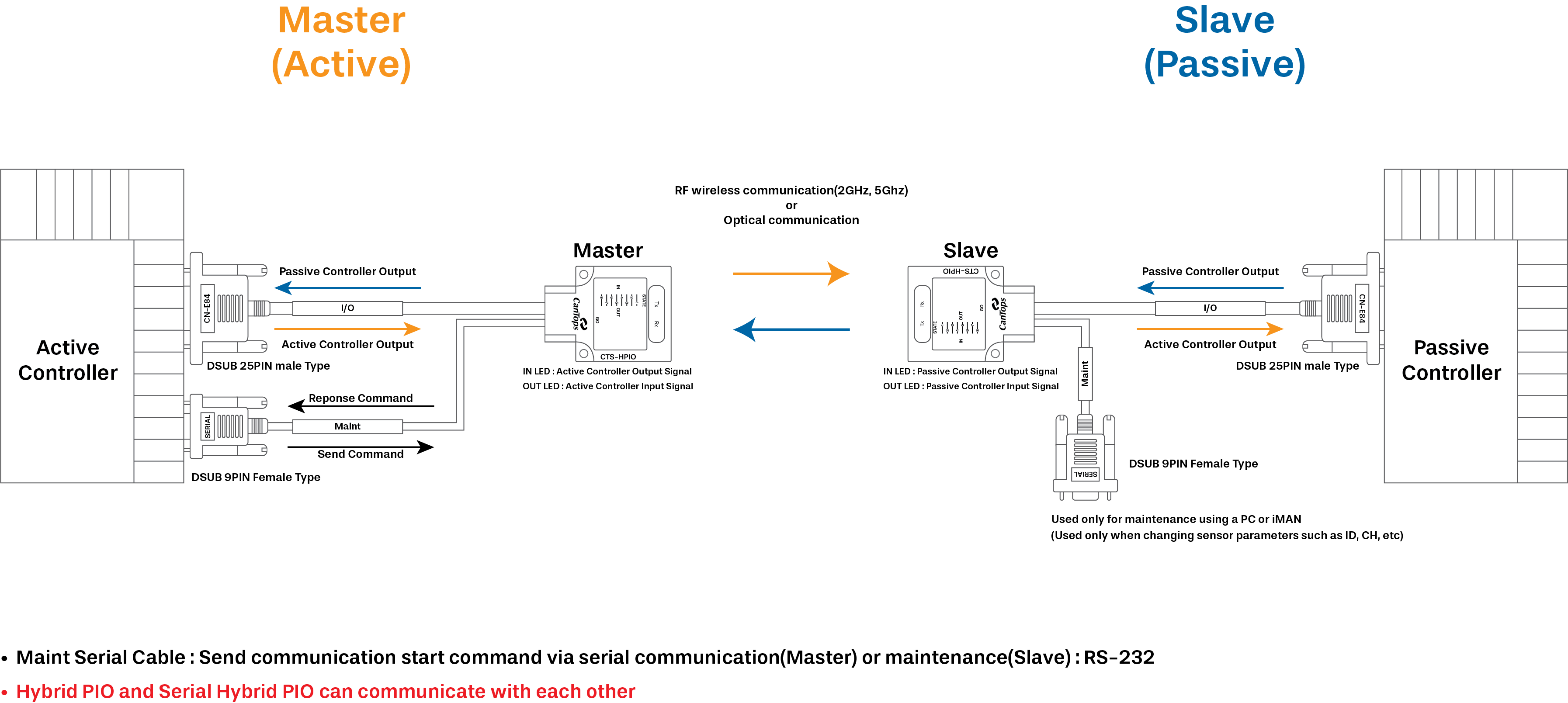

- 1&2Way communication method is applied (RF communication can be performed simultaneously with 2 Slaves in real time with 1 Master)
- The logging function analyzes approximately 100 operations, including communication data, error content, absolute time, and signal strength
- Remotely configure options such as Setup, Log Download and Emulation with the wireless remote control iMAN+
- When using the RF, the removal of ducts by facility relocation is eliminated, greatly reducing the cost and time required
KC
- CTS-HCOM : R-C-ca5-CTS-HCOM
- CTS-HPIO-25 : R-C-ca5-CTS-HPIO-25
- CTS-RCOM-BA : R-C-ca5-CTS-RCOM-BA
- CTS-RCOM-PA : R-C-ca5-CTS-RCOM-PA
- CTS-IMAN-AB01 : R-C-ca5-CTS-iMAN-AB01
- CTS-CFHD : R-C-ca5-CTS-CFHD
CE
FCC
SRRC
MIC
NCC
IMDA
RF communication usage environment
Optical (infrared) usage environment
RF communication usage environment
Preparing
Front View
Top View
Please contact us by phone or e-mail for the drawing files.
The PIO LOG VIEWER program is a communication log stored in the PIO that allows you to easily graph the communication/work status between the VHL and the EQ in the field. RF communication errors and work conditions due to electromagnetic noise can also be easily analyzed.
- Check PIO operation status (power supply and communication availability)
- Real-time I/O communication between VHL and EQ
- Optical (Infred)/Electromagnetic Noise Interference Communication Error Analysis
Manual/AutoEmulator is a product used to manually or automatically test load/unload operations over Semi-E84/E23 communications.
It is used for functional verification and shipping inspection at the development stage.
- Manually and automatically verify I/O communication without VHL or EQ
- Manual Emulator for EQ : Manually check wiring and I/O operation without VHL (mainly used by facility manufacturers)
- Auto Emulator for VHL : Automatically verify VHL transfer re-operation without EQ (mainly used by VHL production companies)
Product Code Configuration Table
The product code identifies Hybrid PIO specifications.
25 : RF band (HybridPIO in affected product code is 2G/5G capable)
PSS : Communication method and operation (Parallel, Parameter change to Serial, operation SLAVE)
SS : Customer code
11 : Connector type (Serial connector DSUB9 Pin female, I/O cable connector DSUB25 pin male)
05: Distance when using optical (IR) communication (05 is 0.5M)
F : IR Window Direction (F : Frontview, T : Topview)
150 : I/O cable Length (150:1.5M)
030 : Serial cable length (030 : 0.3M, Serial cable used for Maintenance)
000 : External antenna length (100 : 1M) if external antenna is present
00 : Hybrid PIO mode / SEMI Standard E84, E23 (use 5Ghz Hybrid Mode, SEMI E84 for 00)
Please refer to the specifications for details.
