LM Series
CTS-RFID-LM Series
134.2KHz RFID Reader

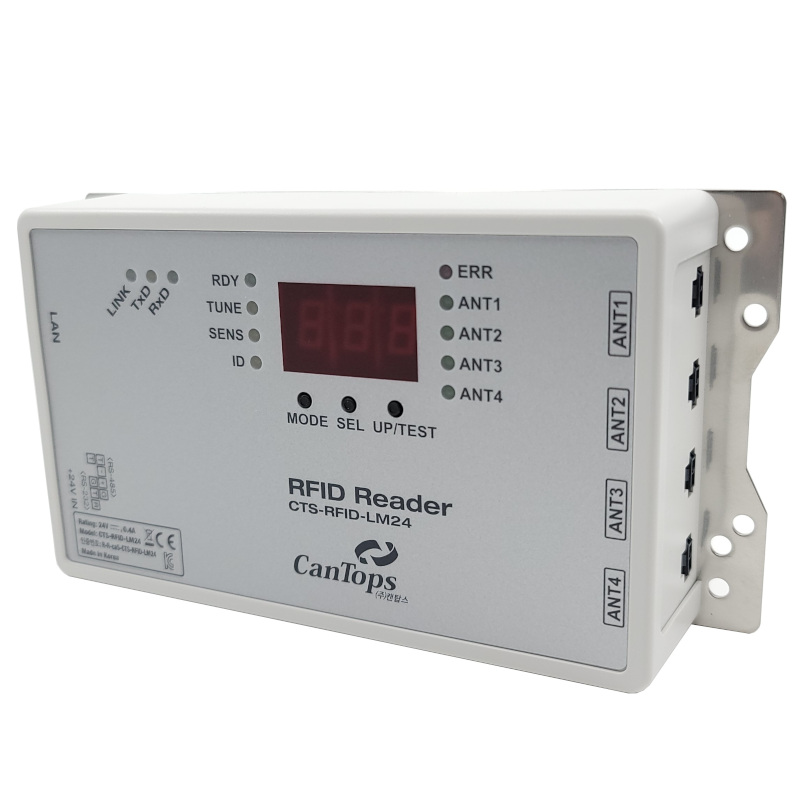

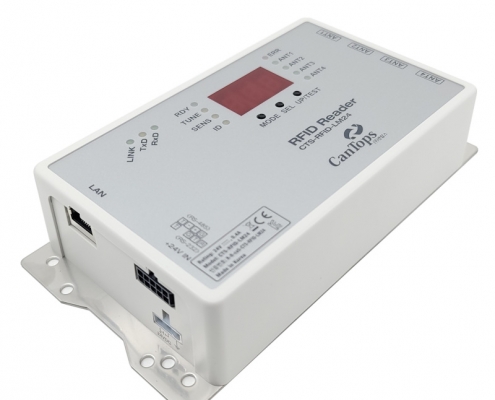

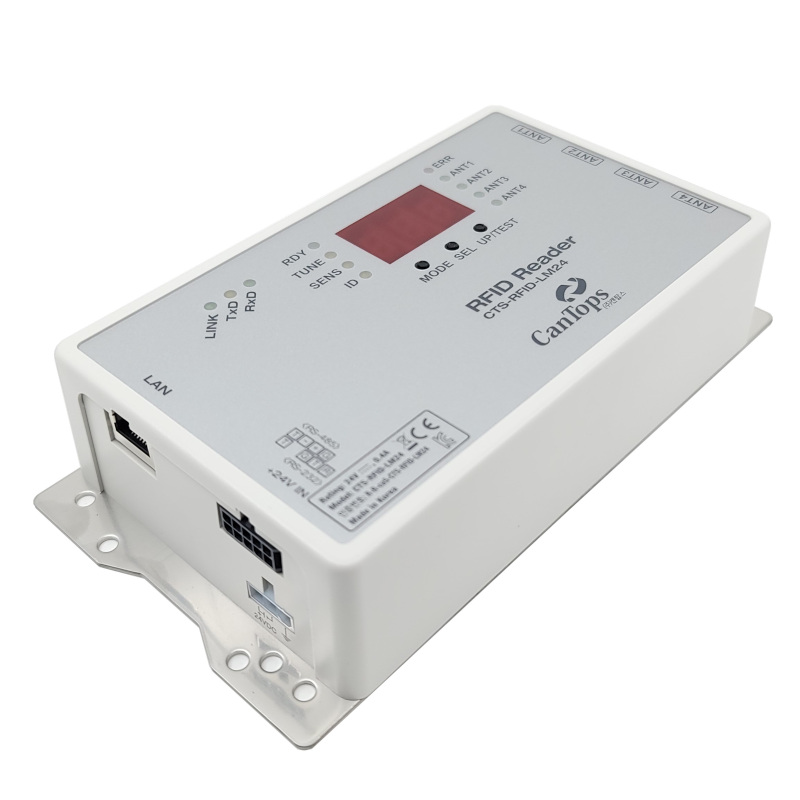

As a 134.2KHz band frequency RFID Reader, LM Series is manufactured to be able to communicate with ISO11784 & ISO11785 conforming Transponders. In the meantime, this product is designed to be operated in various noise environments, and also, is optimized for the use of management of the logistics of the semiconductor lines. This product is consisted of the Reader main body and RFID antenna.

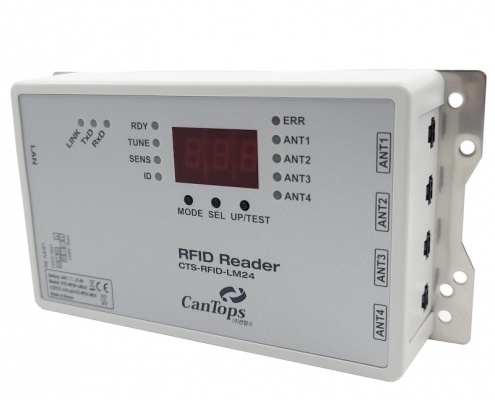

LM24 and LM21 support a variety of protocols and interfaces and can be used instead of OmronV640 and Brooks readers.
- Stable operation in electromagnetic noise environments
Find and re-communicate frequency bands optimized by AutoTune function in case of communication failure - Available in two types: 4 channels and 1 channel only
- Provides a wide range of communication protocol options
Alternate use of Omron and Brooks readers - The logging function enables analysis of approximately 10,000 pieces of work including communication data, error content, and absolute time.

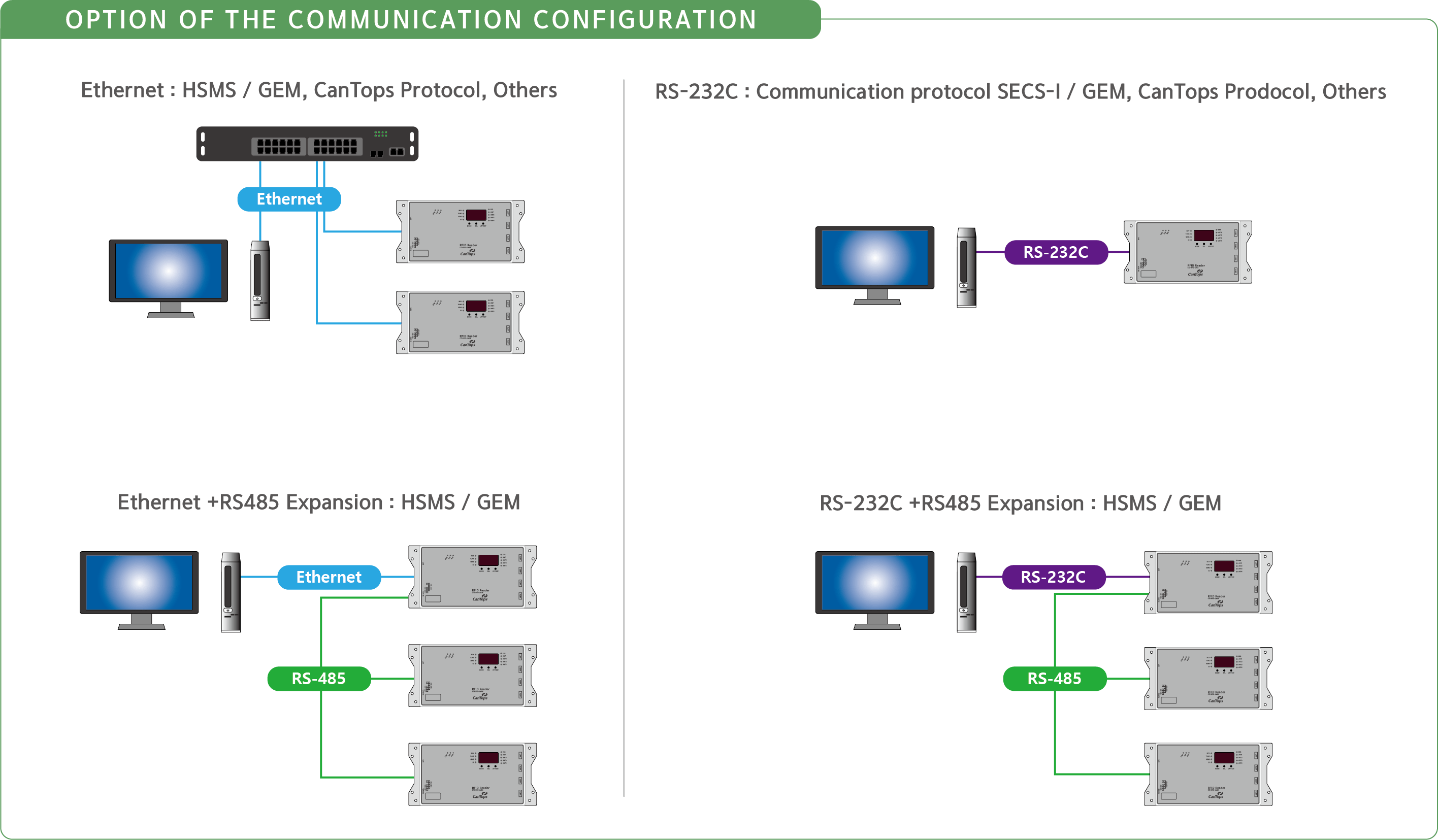

- Supports RS-232C, RS-485, and Ethernet communication specifications
Classification | Items | Contents |
---|---|---|
RFID TAG reading capability | Frequency | 134.2KHz |
Reading time * | Min. : 130ms / Page, Max.: 500ms | |
Writing time* | Min.: 390ms / Page, Max.: 1500ms | |
Max. Reading Distance | 110 ~ 160mm (varies depending on the type of antenna) | |
Max. Writing Distance | 70 ~110mm (varies depending on the type of antenna) | |
Bending diameter | 45mm | |
Length | 1M ~ 5M (optional, provided by meter only) | |
Material | PVC | |

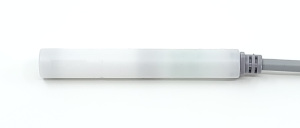

Antenna (option) | Stick Type | CTS-RFID-ACzz/AOzz/ABzz-xxyy * refer to document “HF RFID Specification” |

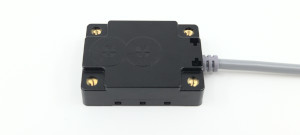

Square Type | CTS-STBA-EC0/1-xxx, CTS-STBA-MC0/1-xxx * refer to document “HF RFID Specification |
|
Material | PC, Black | |
Connector | 43650-0200 (Molex) | |
Communication specification | RS-232C | 1ea, 1:1, Full Duplex |
RS-485 | 1ea, 1:N (Max. 32), Half Duplex | |
Ethernet | 1ea, 100/10 Full Duplex | |
Communication protocol | Cantops Protocol I / II, other protocol | |
Communication speed (bps) | 4800, 9600, 19200, 38400, 57600, 115200 | |
Environment | Storage | Temperature: -25 ~ 70°C, Humidity: 5~95 %RH (however, no condensation is allowed) |
Operation | Temperature: 0 ~ 50°C, Humidity: 35~85 %RH (however, no condensation is allowed) |
|
Power | Input power | DC 24V, when reading - 0.41A, stanby - 0.1A |

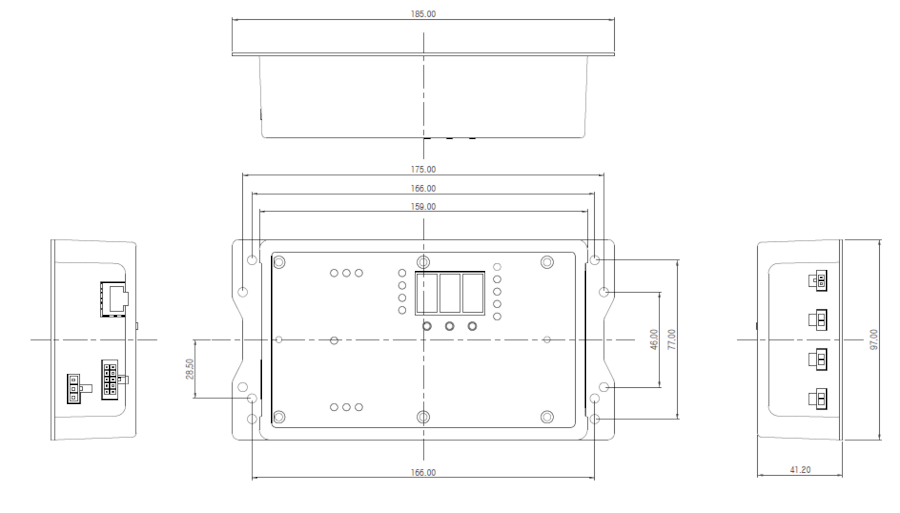

Size (W´H´D) | 185*97*41.2mm (extruded part of the connector excluded) | |
Weight | Approx. 540g (weight of the main body) | |
Case material | ABS, SUS(steel) |

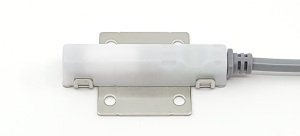

The RF antennas used with LM Series are C Type, O Type, B Type, and Square Type.
The read/write communication area of the tag varies depending on the type.
Based on the Square Type and C Type antennas provided with our RFID Reader, we provide a leading area.
TAG provides leading areas for RI-TRP-DR2B-(OLD)/30/40, three types.
Please contact us for installation materials.
LM Series Product Codes
The product code identifies LM Series specifications.
4 : 4ch RFID Reader (1 : 1ch RFID Reader)
CC : CanTops Protocol (CO, CB, C1)
1 : 9600 Baud rate (bps)
0 : Parity None
Please refer to the specifications for details.
Please contact us for more information.
