FOUP Sensor
CTS-STBS-xx-A

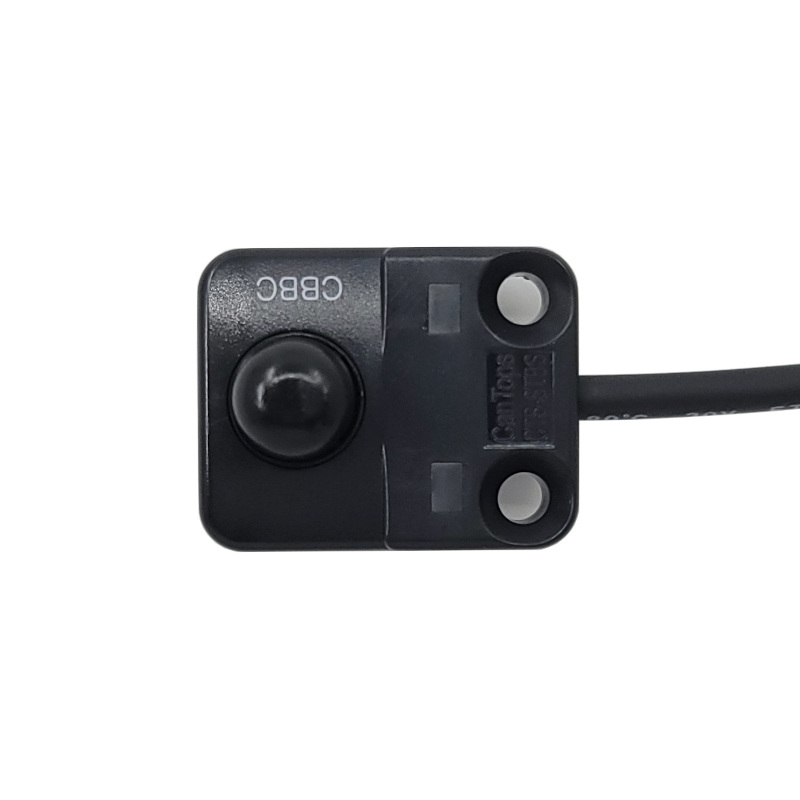

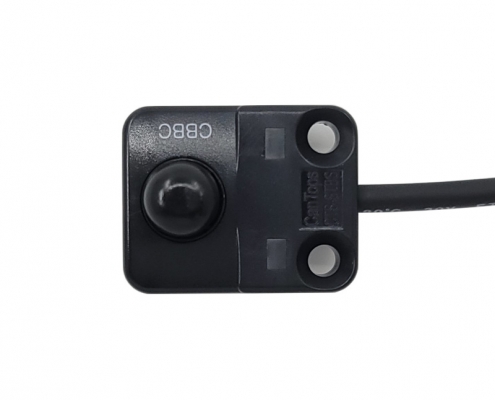

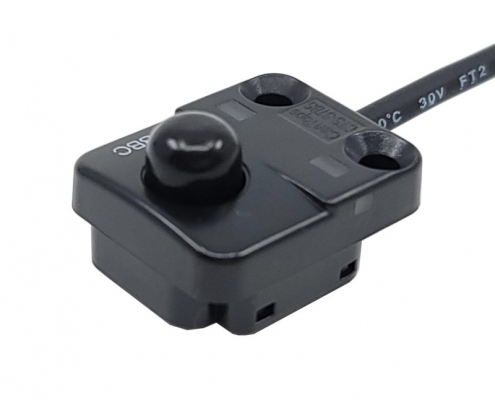

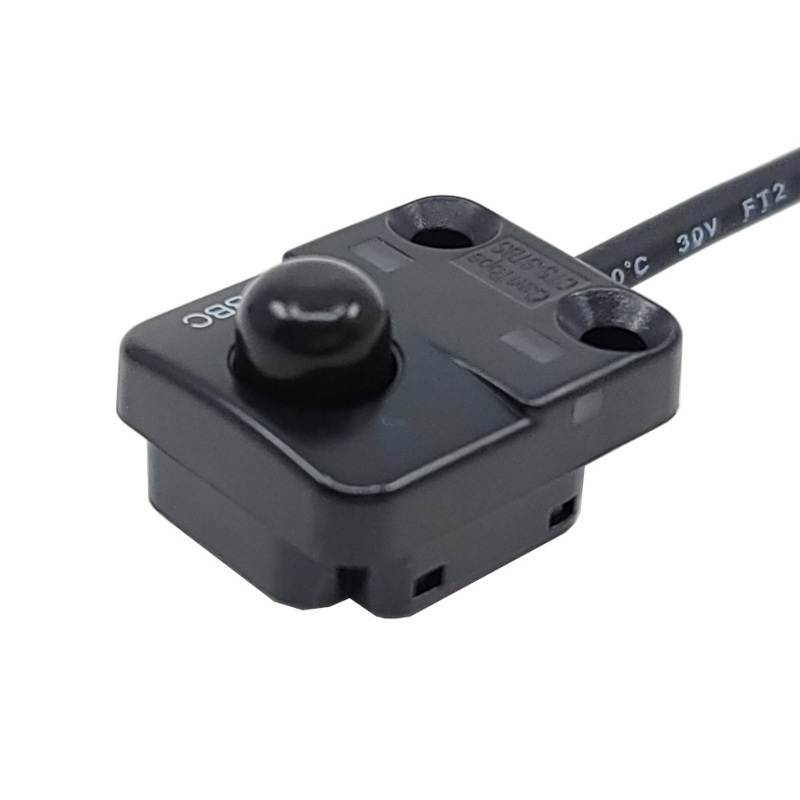

Mini FOUP Sensor
FOUP Sensor is installed in LoadPort, STB, Stocker, etc. among semiconductor line facilities, and is a sensor that detects WaferCarrier (FOUP/FOSB/POD/MAC) by contact.
Because it is a contact type, it can stably detect the presence or absence of objects without being affected by ambient light noise or electromagnetic wave noise, and it uses an internal sensor optical system to guarantee a life span of more than 5 million times.
- CTS-STBS-Ax(NPN)
- CTS-STBS-Cx(PNP)
- CTS-STKS-Ax(NPN)
- Wafer Carrier Contact Detection Improves Reliability
- Can be configured and customized with Head, Cable and Connector parts
- Rated operating current: 15 mA or less
- 12 to 24 VDC operating areas
- Response time within 1.5 ms
- Built-in reverse voltage and overheat prevention circuits
- LED can check operation status

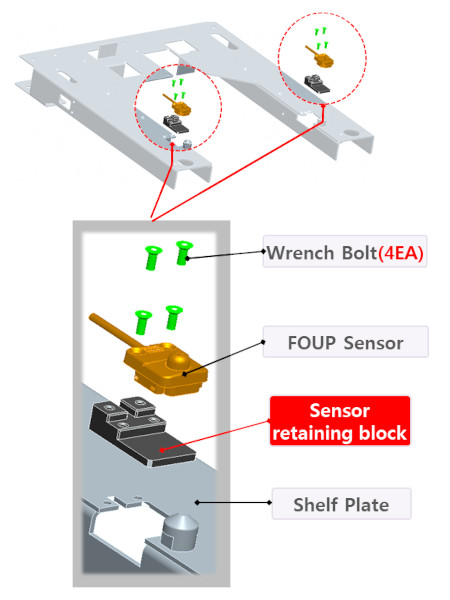

Additional sensor fixing blocks are required for installation and assembly.
Installation Can be installed without a fixed block
Field | Items | Description | |
---|---|---|---|
Sensing | Operation method | Contact type | |
Internal sensing | Using Optical sensensor | ||
Distance of Detection | Total operating distance | 5.0mm ±0.3mm | |
Non-detecting section | 5.0~4.5mm | ||
Unstable detecting section | 4.5~3.5mm | ||
Stable detecting section | 3.5~0mm | ||
Operation Force | max 3.5 N | ||
Life time | Over 5 million times operation | ||
Output | Indicate LED | RED LED is turned on when pushing Movement | |
Output Type | NPN type | ||
characteristic of output TR (On) | • When movement is not pushed • Driver load : 5 ~ 24V DC, max 50mA • Voltage drop : bllow 0.5V at 50mA load current |
||
characteristic of output TR (Off) | • When movement is pushed • leakage current : below 0.5mA |
||
response time | below 1.5ms | ||
Circuit of Protection & Safety | Input power | Reverse voltagte protection Overheat protection |
|
Output signal | ESD protection | ||
Certifications | CE | EN55022:2010, EN55024:2210 | |
MTBF (Circuit Parts) | MIL-HDBK-217F | 20Years@25℃, GM(Ground Mobile) | |
Spec. of cable | Dianeter | 3.0mm | |
Bending diameter | 45mm | ||
Max length | 9M | ||
Material | PVC | ||
Number of strands | 3core, AWG26 | ||

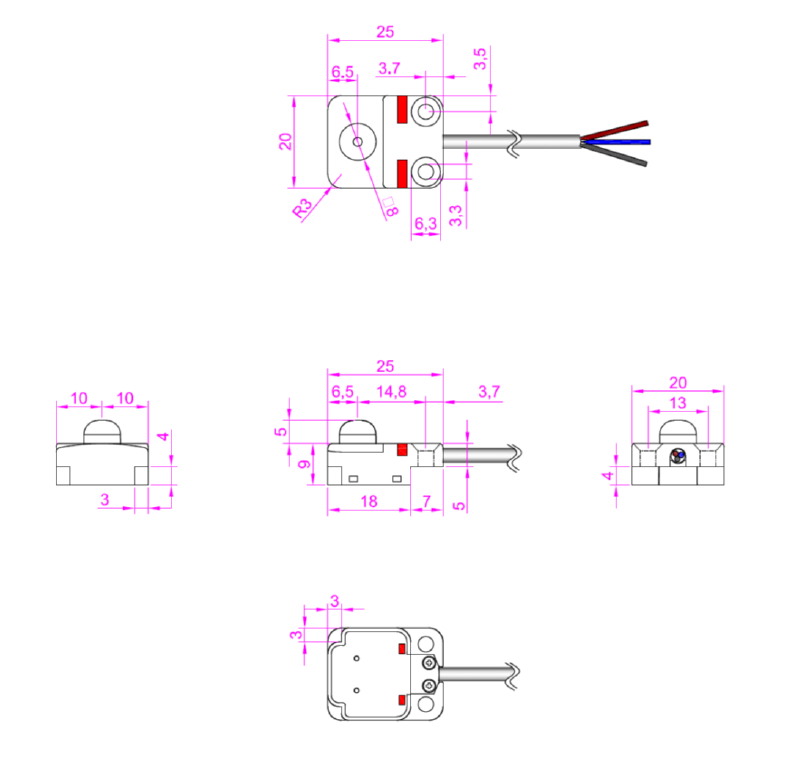

Spec. of case | Dimension | 20 x 25 x 9 mm | |
Material | Body : Polycarbonate Movement : Polyacetal Color : black |
||
Spec. of envirinmental | Storage environment | temprature: -25 ~ 70°C humidity: 35 ~ 95 %RH(without icing or condensation) |
|
operating environment | temprature: 0 ~ 50°C humidity:35~85 %RH(without icing or condensation) |
||
Input Power | DC 12 ~24V ±10%, below 15 mA | ||
Wetight | Approx..45g (included 3meters cable) |
Please contact us for more information.
