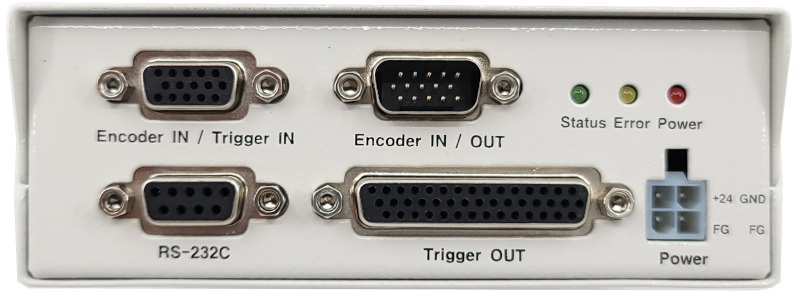

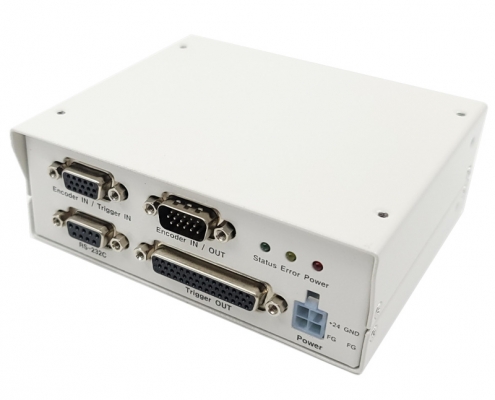

Camera Trigger
- Number of trigger output signal channels : 8 (expandable)
- Input/output signal types : TTL, Photo Coupler, Line Driver
- Configuring and controlling operating modes through serial communication (RS-232C) connections
- Internal clock generator can be used instead of encoder input
- Parallel logic design using FPGA enables independent configuration of each channel
- Trigger output signal polarity and pulse width setting function
- Provides parameter storage using EEPROM
- Output control using external digital input signals : counter reset, output signal activation/deactivation
Preparing
Group | Item | Details |
---|---|---|
Encoder In/Out | Input signal | Line Drive input: A+, A-, B+, B-, Z+, Z- (100 Ohm Differential Termination, Receiver Input Voltage: ±25V) |
5V TTL input: A, B, Z | ||
Option : PHOTO input A, B, Z | ||
Number of input channels | 1 channel (Option expansion 1 channel) | |
Input frequency | Maximum 8 MHz (Multiplied by 4) | |
Filtering input signal | Digital Delay Filter | |
Counter | 32 bit (0~4294967295) | |
Output signal | Line Drive output: A+, A-, B+, B-, Z+, Z- | |
Number of output Channels | 1 channel | |
Output frequency | Maximum 8MHz | |
Trigger Out | Type and number of output signal | 5V TTL: 8 |
PHOTO, Open Collector: 8 | ||
Line Drive: 8 (100 Ohm Differential Termination, Driver Output Voltage: -7.5 ~ +10V) |
||
Support for 8 output ports | Possible to individually operate | |
Indicator | Power | Red LED in normal state |
Error | Yellow LED in abnormal state | |
Status | Flickering Green LED in normal state | |
Communication | RS-232C | Max. 115.2Kbps (default value) |
Function | Parameter setting, control command | |
Environment | Storage environment | Temperature range: -25~70°C Humidity: 5~95% RH (However, there shall be no dew condensation) |
Operating environment | Temperature range: 0~50°C Humidity: 35~85% RH (However, there shall be no dew condensation) |
|
Power Supply | Input voltage | DC 24V ±5%, 1A |
Dimensions(W x D x H) | 125110. 445mm (Except connector extrusions) |
