Ethernet DIO Control Board
CTS-ETND Series
Ethernet DIO Control Board
The Ethernet DIO control board is a digital input/output board insulated with up to 16/16, 32/32, and 80/80 photo couplers utilizing 100 MHz Ethernet. In particular, the output can directly drive relay-like output with high current drive using N-Channel Power MOSFET. It uses external noise and surge protection circuits and is suitable for use in FA environments.
CTS-ETND-BBC3 : 16/16
CTS-ETND-DDx1 : 32/32
CTS-ETND-JJA2 : 80/80

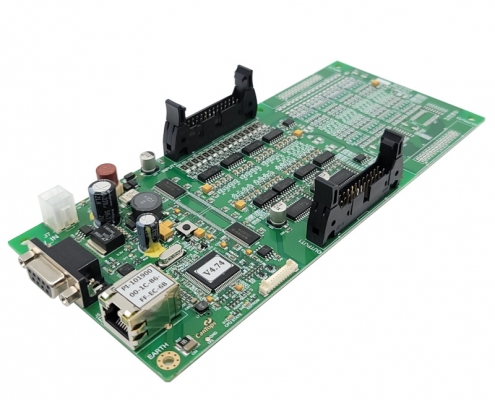

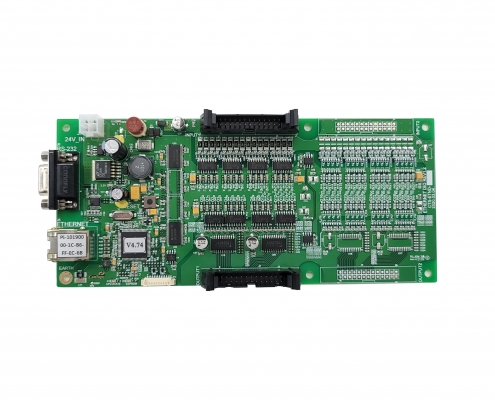

CTS-ETND-B Seires
- 10/100 based-T Fast Ethernet
- Various communication commands : 9 system controls, 5 I/O controls
- Setting the input port filtering order by parameter setting.
- PhotoCoupler Isolated/Output : 16 points/16 points
- Temperature check function inside the board.
- Supports the TCP protocol.

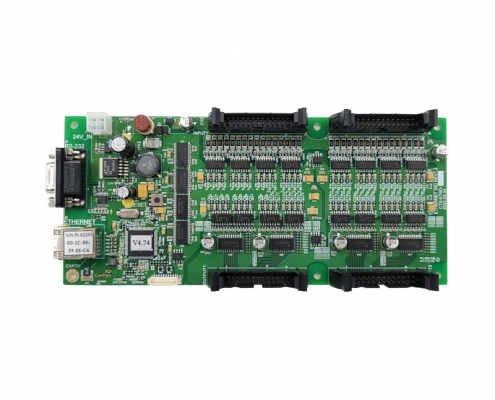

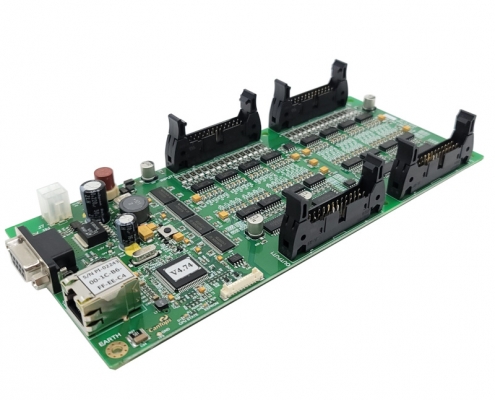

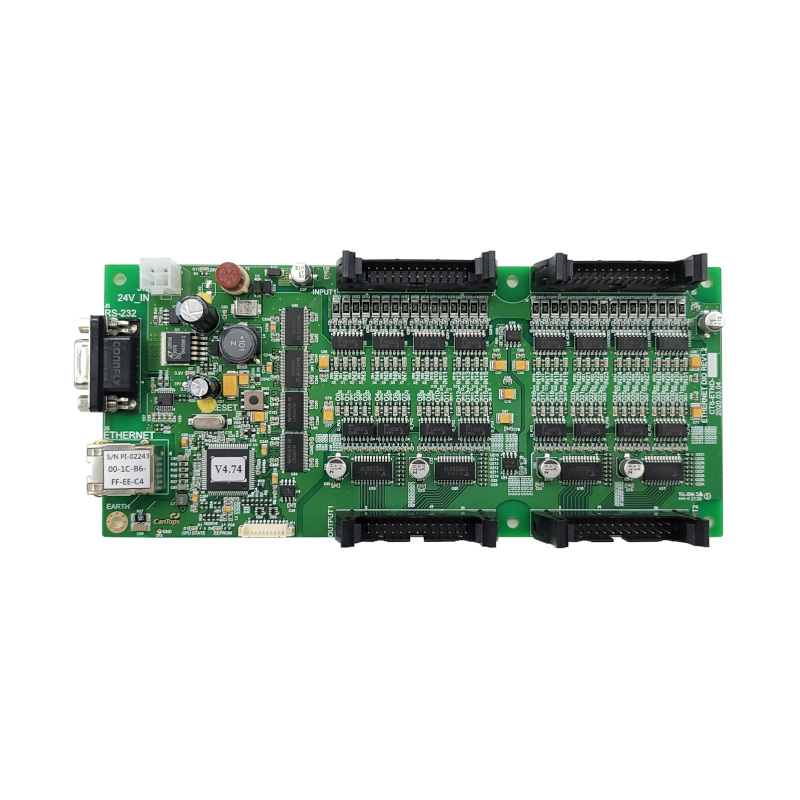

CTS-ETND-D Seires
- 10/100 based-T Fast Ethernet
- Photo Coupler Insulation : 2,500V
- Can select the number of I/O ports in 8-point increments.
- Enhanced safety with Watchdog and hardware E-Stop features.
- Temperature check function inside the board.
- Supports the TCP protocol.

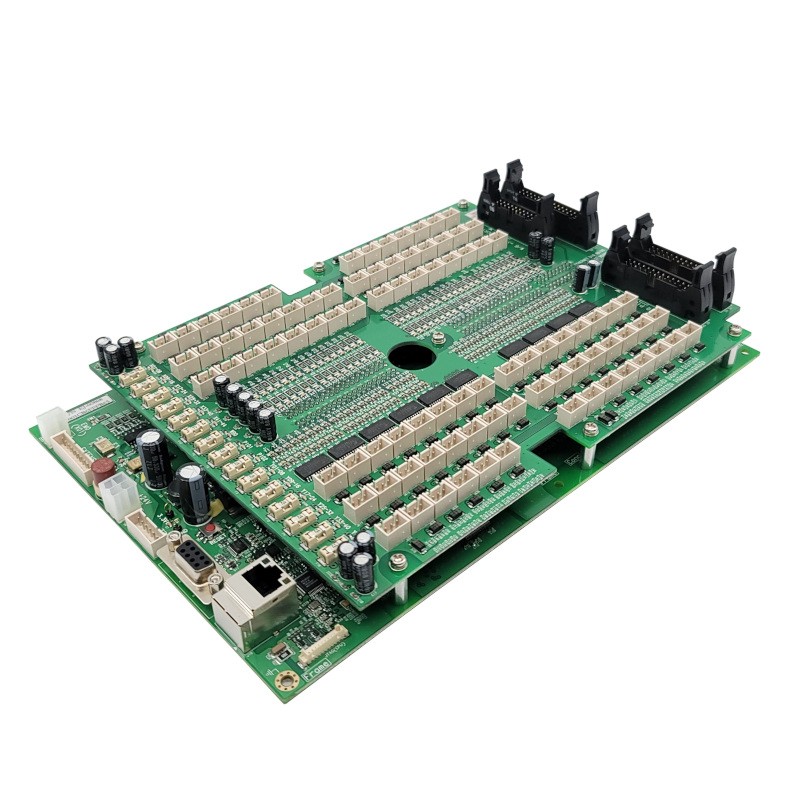

CTS-ETND-J Seires
- 10/100 based-T Fast Ethernet
- Photo Coupler Insulation : 2,500V
- Supports the TCP protocol.
- Output overcurrent protection circuit
- Fuse in 8-point input/output units
- Fuse operating condition and short circuit detection circuit display function
- Features required to make Off-Line facilities in-line.
- RS-232 Teaching Pendant connectivity enabled
- Status and Log Storage Memory Features
- O Scan Time : 1mS (Stand-alone Mode)
- Fuse disconnection notification and Watchdog processing capabilities
Refer to specifications by product code
Please contact us for more information.
